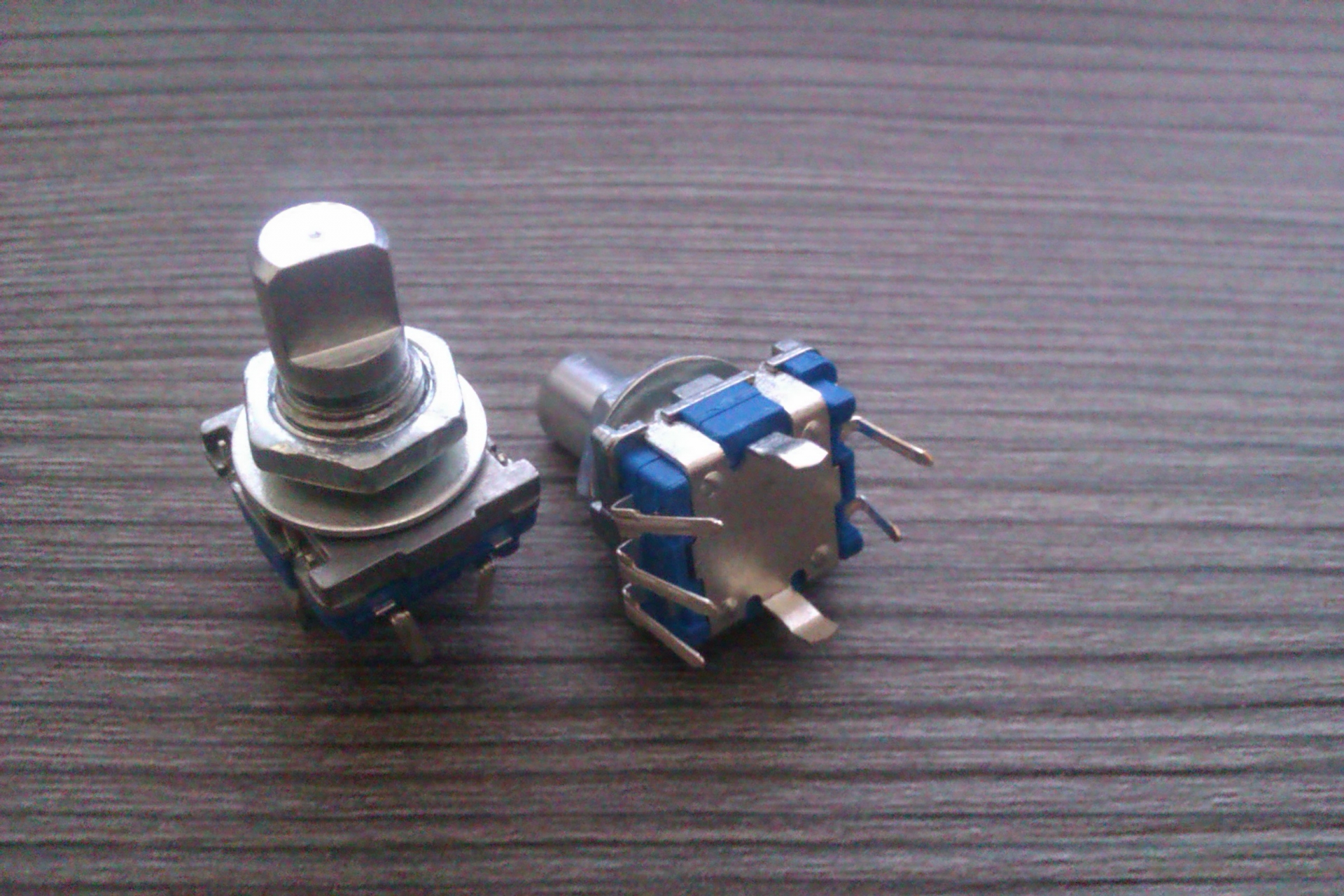

Rotary encoder met keyswitch, kort asje van 4mm.

Rotary encoder met keyswitch, kort asje van 4mm.

Wordt geleverd met moer en ring.

Specifications:

Rotary Shaft Length: Approx. 4mm
Shaft Full Length: Approx. 12mm
Shaft Diameter: Approx. 6mm Size (L x W):
Approx. 15 x 11mm
Position: 20 Pulse: 20
Output: 2-bit gray code
Closed Circuit Resistance: 3 ohms maximums
Max. Rating: 10 mA @ 5 VDC
Operating Temperature Range: -30 to 70 degrees celsius Storage
Temperature Range: -40 to 85 degrees celsius
Rotational Life: 30000 cycles minimum
Switch Life: 20000 cycles minimum
